Upcycling Milk Crates to a Shoe Rack

02.06.2018

0600

Materials:

  • 2 Milk crates (about 12″ cubes)
  • Twelve 2″ Multi-Purpose Construction Screws
  • (Optional) Three 1″ wood screws – (for creating the holes)
  • 2 Wood boards (12″ x 11-1/4″ x 1/2″)
  • 16 small screws for holding seats in place
  • Pencil

Tools:

  • Power Screwdriver
  • Table saw / Mitre Saw (or saw it by hand with a rip hand saw)

So I needed a small bench shoe rack piece of furniture. All of the designs and products I flipped through on the internet weren’t quite what I had in mind. I needed a fairly short lengthed bench that didn’t need to store a lot of shoes. I also wanted a compact design. I only own six pairs of shoes and I don’t wear them all in the same season so the rest of the room would be for my family.

I knew I had a few milk crates, which I saw the potential use for this project. It was simple idea and I knew what I wanted the final product to look like.

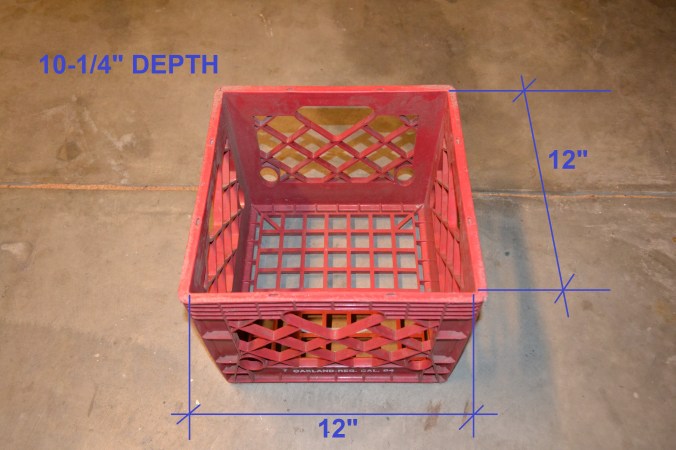

The interior space within each milk crate was 12″ wide, 12″ high and 10-1/4″ deep. The height of the crate was enough room for two levels for shoe storage.

DSC_8825 - Copy

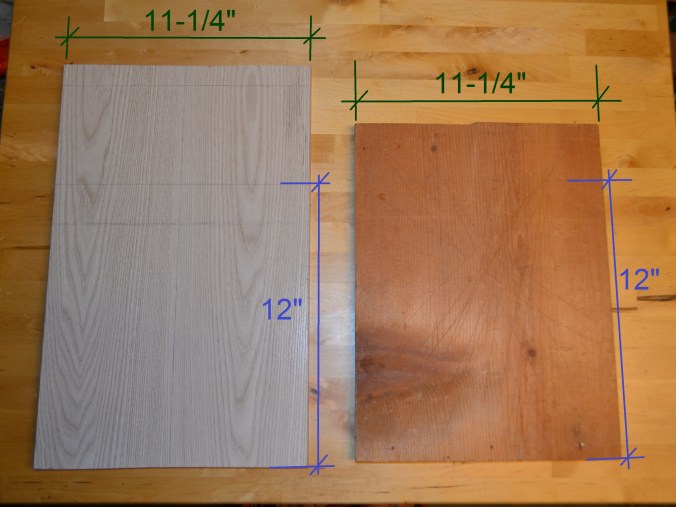

Since I was going to use two milk crates, I went ahead and found two random wood boards about 1/2″ thick. The boards I found were slightly wider than the depth of the crates, but I left the extra inch for larger shoes.

So using a miter saw, I cut each piece of wood board down to 12″ x 11-1/4″.

DSC_8834 - Copy

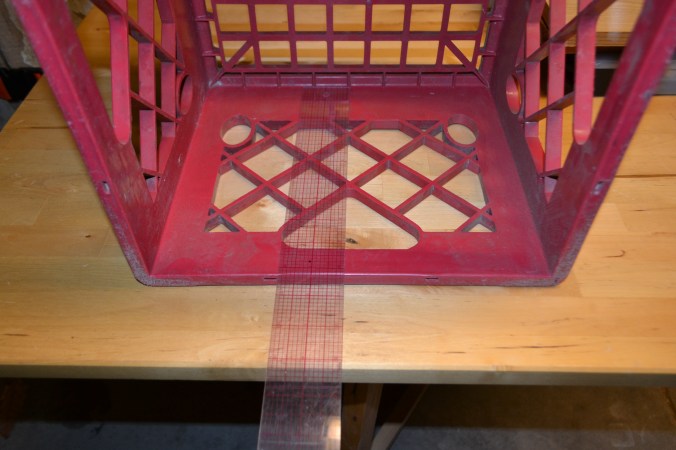

Next I divided the interior height in half and created a guideline down the middle. Since the crate is plastic, I used an exacto blade to lightly score the midline.

DSC_8837

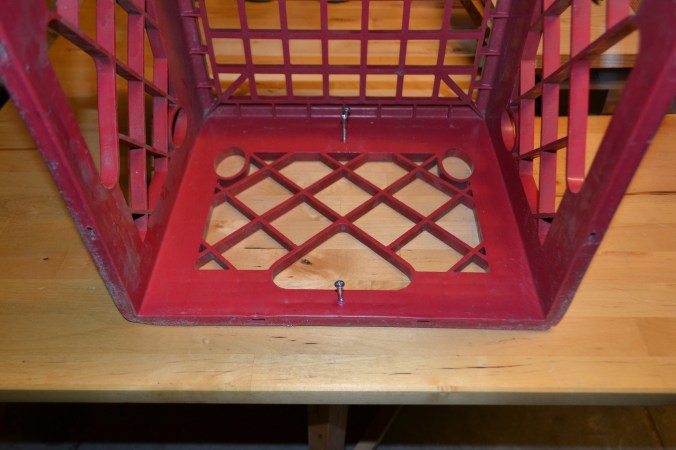

Using the wood screws and my power screwdriver, I pinpointed the locations of where I wanted my 2″ screws to be located. I like using the wood screws when locating holes in plastic because I can hold the shank of the screw and still guide the power screwdriver to create the straight hole.

wood screw Diagram

DSC_8838

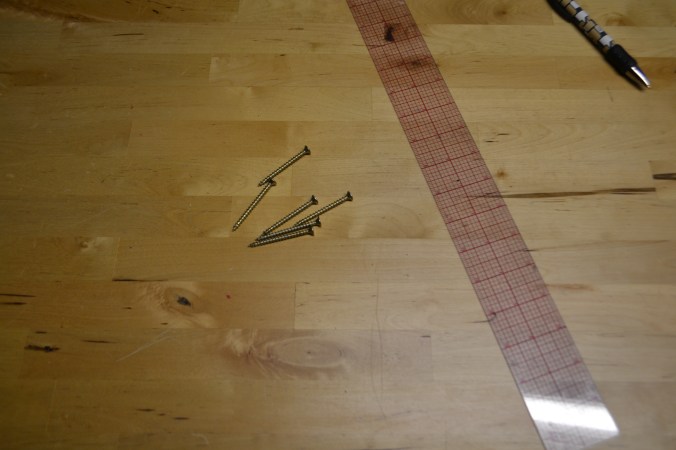

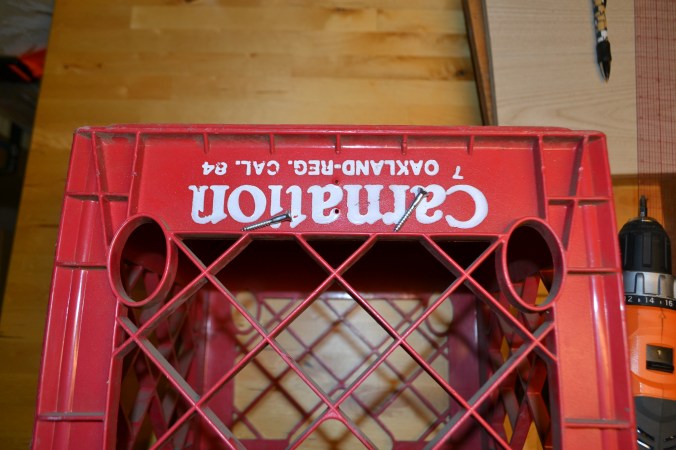

After the holes are created, I took the 2″ย Multi-Purpose Construction Screws and screwed them into the premade holes.

DSC_8841DSC_8843

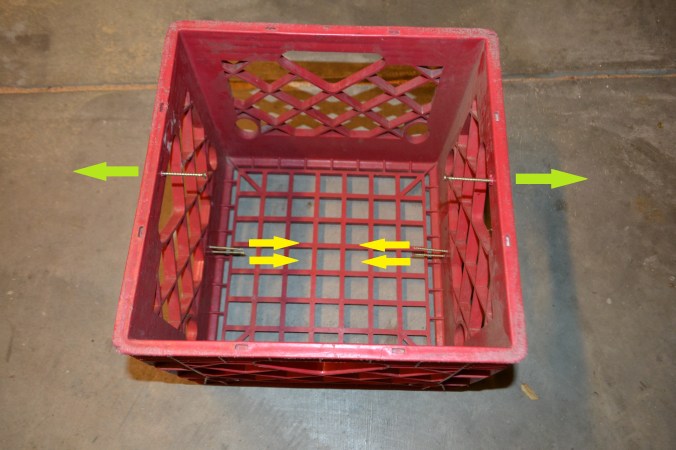

For the four screws that were located further towards the back of the box, I screwed the 2″ย Multi-Purpose Construction Screws inwards. And for the two screws located towards the opening of the box, I screwed them outwards.

I wanted the back of the box to be supported more since it was further back. Also, I didn’t want anything sharp located towards the front opening.

DSC_8842 - Copy (2)

I simply install each box with a board, placing the boards on top of the screws. The boards fit well and were snug enough where they didn’t move either.

Most shoes are longer than 10-1/4″, so leaving the extra 1″ helps with different sized shoes. If you need to store boots or shoes that wouldn’t fit the original designed space, you can simply remove one of the boards and the two screws closest to the opening. (I left the two screws here to show the original design)

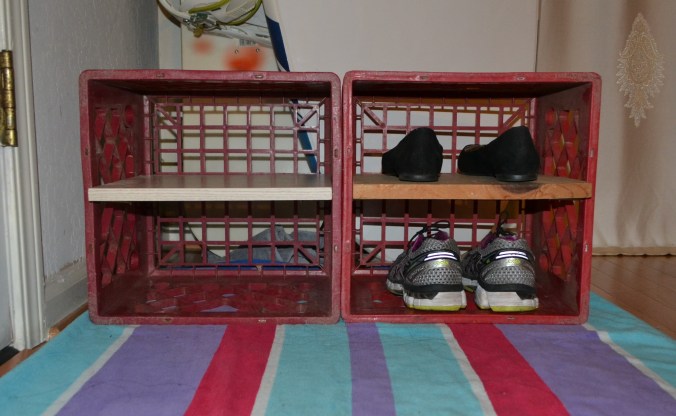

So there you have it, you can create a simple seat and shoe storage very quickly and with simple materials. You can install a wood board on top to create a bench or stack these crates on top of a 2″ x 4″ frame to have one more level. There’s a variety of designs this can break out into. I might just do that when the spring season rolls around.

Hope this post jogged up ideas!

DSC_8858 - Copy

DSC_8853 - Copy

Update:

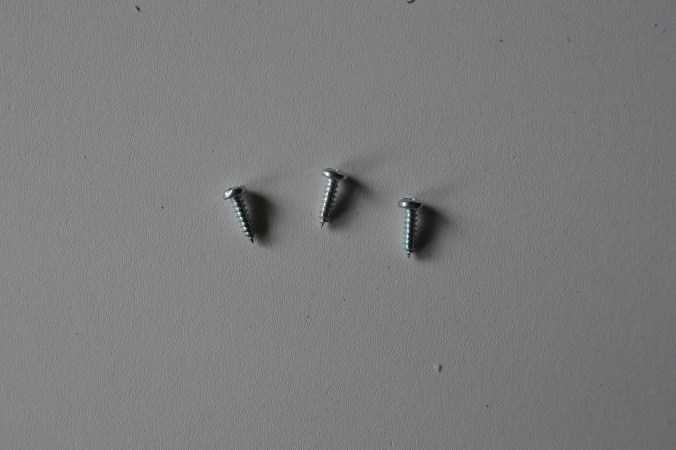

I wanted to secure a seat on top of the crates so I took another extra piece of wood board and lined it next to the piece I usually keep on top of the creates.

DSC_9711

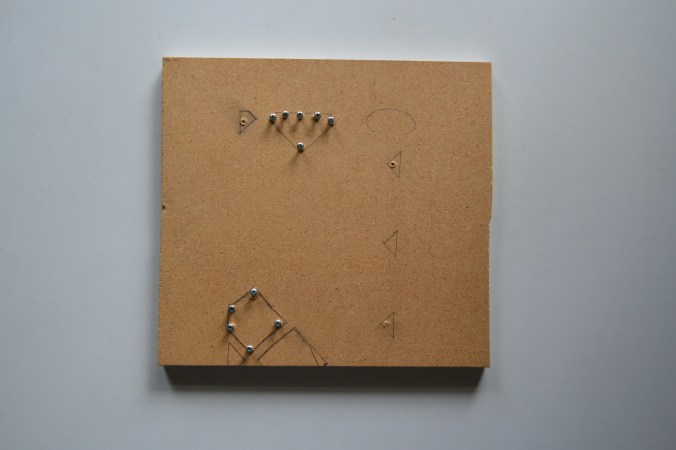

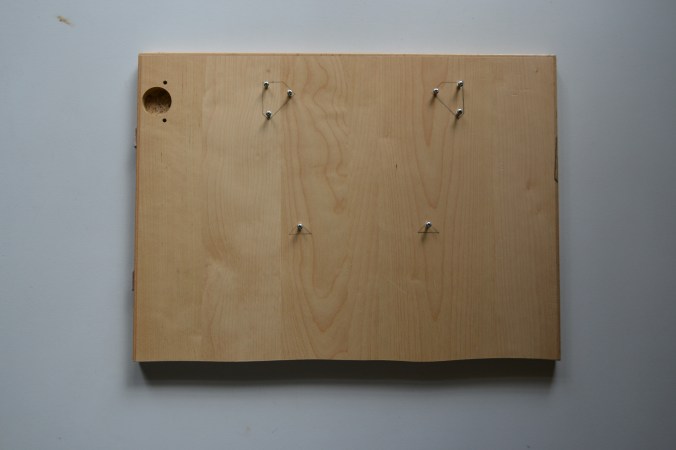

I took my pencil and traced the crate pattern on the underside of each board and then used small screws to outline at least two crate holes using the small screws. In order to know where I had to place my screws, I flipped my screws over so that they would be standing on their heads and then gauged where the sharp end of the screw would land. The head of the screws had to hug the insides of the traced corner, so I knew where to place it. Wherever the screw could touch both edges of the location, was where I knew I had to place the screw.

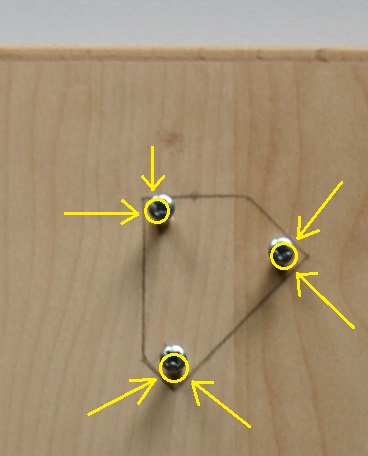

I measured the location for the screws in this manner because I wanted the screw to fit right inside of the hole I traced. The head of the screw as well as the thread of the screws had to fit comfortably into the existing holes, once it was flipped over.

DSC_9708

I didn’t screw the screws in the entire length of the thread, so be very aware of the depth of the wood piece you pick out and the screw length that you choose as well. The idea here was to still have the screws sticking out of the board so it would fit nicely into the holes that were traced.

DSC_9708DSC_9705

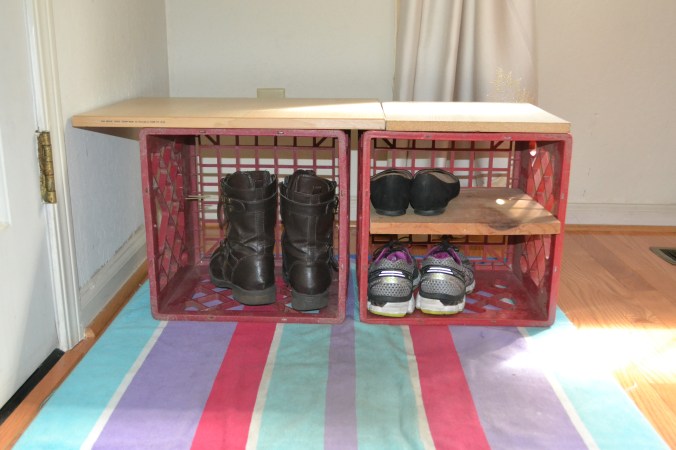

Once I placed the boards back onto the crates, the top was created into a quick seat to use while putting on shoes (or taking them off).



DSC_9721

So there you have it! I like this much more now with the seat on top, and secured into place.
