Cheap and Easy TV Mount

06.27.2017

0600

Materials:

  • One 1-1/2″ (width) x 5-1/2″ (depth) wood lumber about 18″ (length)
  • Two 2-1/2″ wood screws (to hold the first wood piece against the wall)
  • Two M4-7.0 screws , at 40 mm in length (to hold the second wood piece against the television)

Tools:

  • Drill
    • Drill bits (drill bits to drill holes for the screws that will hold the wood piece against the wall as well as to drill holes in the wood piece that will attach to the television.
    • Flat wood drill bit (to create the holes that I’ll use to sink the screws into the wood, so that it won’t pop out)
  • Table saw (or saw it by hand with a rip hand saw)
  • Measuring Tape
  • Heavy duty block magnets

DSC_6071

Locating the studs in the wall:

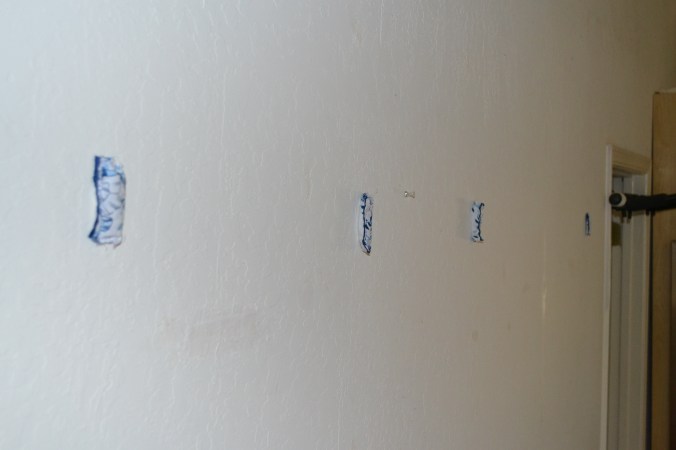

So I wanted to mount my TV up on my wall, and I wanted to do it in a simple and cheap way so I figured that a French Cleat would be the best. First I located my studs in my walls, and I used a different method this time. Usually, I can differentiate stud sounds through the gypsum board, but I thought I would share the other method I use. If you take strong magnets and move along the wall, they will be able to locate the existing nails embedded on the studs. Now, because this can leave scratches along the paint on your wall, I actually sewed little fabric sleeves for each one from fabric I had left over from other previous projects. You don’t have to use fabric, you can wrap paper around it and locate the studs that way too. Sometimes it takes a bit of searching to find the first nail, but once you do, the rest of the nails will be located within the same location on the other studs.

Knowing where the studs were located, gave me the general length of how long of a piece of wood I would need, so I chose an 18″ piece of wood.

DSC_6075

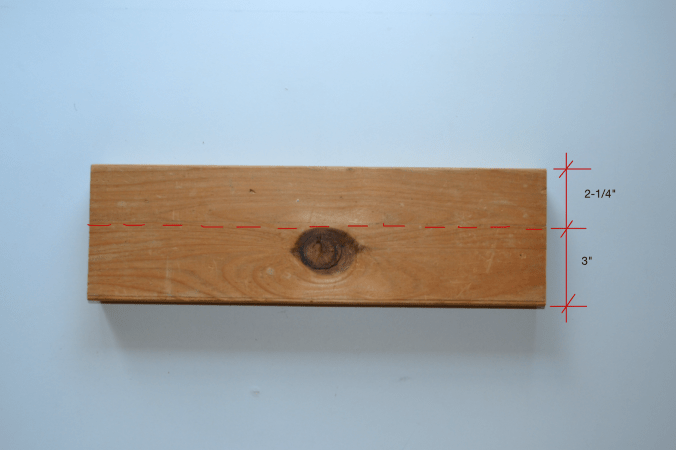

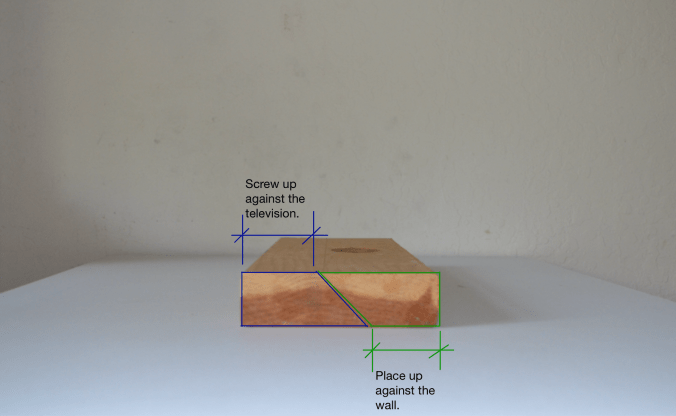

I first divided the piece of wood in half. Because the width of the wood was 1-1/2″, I moved the center line off by 1/4″ to offset the width. I did this because the next step was to cut the wood piece in half at a 45ยฐ angle. By offsetting the divided line by 1/4″, the 45ยฐ angle cut would be more centered. I then designated which piece would be screwed against the wall and which one would be attached to the TV. To avoid confusion, mark the surfaces of the pieces which will need to be screwed into the wall and TV with a black line in the corner. So mark the actual surfaces which you know will have screws entering the wood piece.

DSC_6077DSC_6076

To start this, first unhook all of the wires and cords from the back of your television set and place it face down on a towel. It’ll be easier to measure the mounting holes this way.

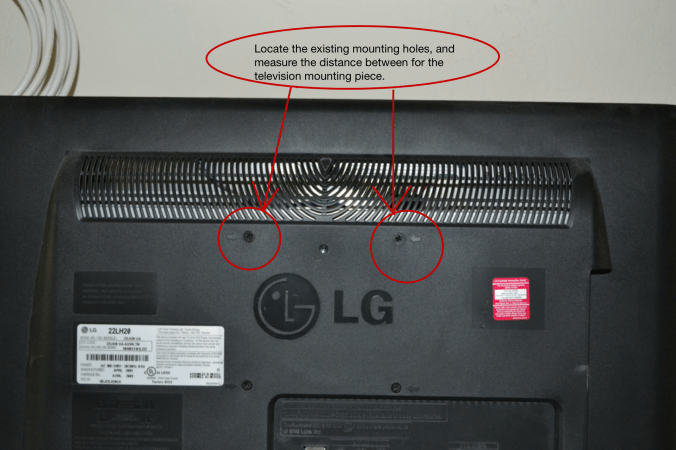

For the wood piece that would be attached to the TV, I measured the width of the mounting holes on the back of my TV (each flat screen television comes with). I simply measured the same distance on my wood piece and marked up the two locations. I marked these holes slightly higher on this piece because I knew the bottom inch of the wood was the angle and I wanted to avoid it. Once you remove the screws where the mounting holes are, you can bring these screws to the hardware store to find longer ones which will be used to attach the wood piece with.

To find the existing depth of the hole on the back of your television, I actually folded a tiny piece of paper and stuck it in the hole until it couldn’t move any further. When it stopped, I marked it with a pencil. My television mounting holes were 1/2″, in case you wanted to use that as a reference. When buying the new screws for attaching the wood piece to the TV, make sure you take into account the depth of the hole and the thickness of the wood. Because I could only find 40mm length screws, I knew I would have to “sink” my screws into the TV wood piece.

DSC_6083

I used the same method for placing the screw holes on the wood piece that would be screwed to the wall. I measured the distance where my magnets were hanging and placed the holes slightly lower on the wood piece. (Always measure the center of the stud to the center of the next stud.) I did this because I knew the top inch of wood was the angle cut.

I drilled my holes accordingly, and the diameter of the holes was based on the diameter of the screws I was going to use for each wood piece. I personally like a slightly snug hole for my screws, so I always measure the drill diameter to be slightly smaller than the diameter of my screw. I like that the screw will fit snug, but it’ll embed itself in the wood as well. For the drill bit that created the holes for the wood piece that attached to the television, I placed that aside, because I would need it to pre-drill holes in the wall when it came time.

DSC_6107

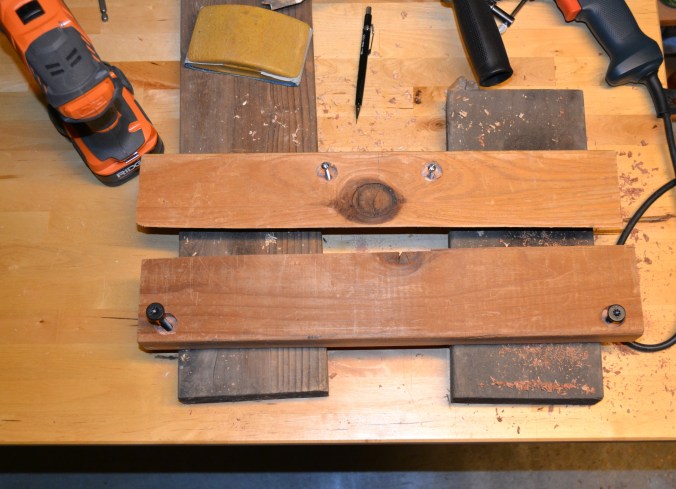

Once the drill holes were made, I took a Flat Wood Drill Bit to create the sinking spaces for the screws. The depth for the sinking holes varied because I used 2-1/2″ screws for the wood piece that would attach to my wall and only 40mm screws for my wood piece for my TV.

For this part, you have to measure the depth of each set of screws. As long as the screws are sunk into the wood and the surface is flush without anything protruding out, it’ll hang nicely. For the TV wood piece, I made sure that when the screws were screwed all the way in, ย that they would only protrude out 1/2″ (which would be where it would attach to the TV). Because the other piece of wood would be attached to the wall, I just had to make sure I pre-drilled holes into the wall.

DSC_6111

DSC_6113

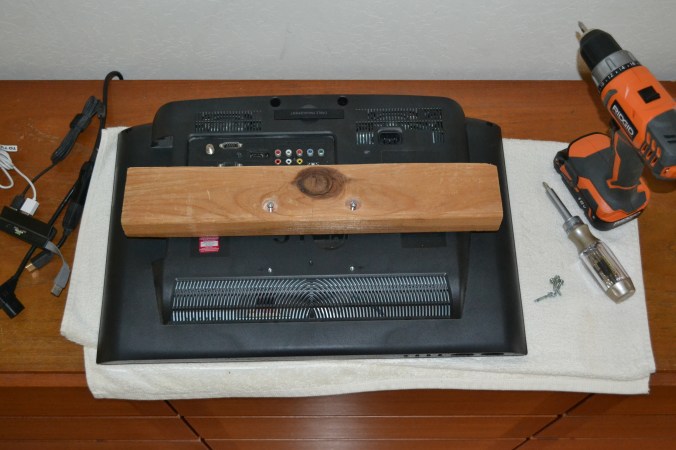

I took the wood piece that was designated to be attached to the TV, and screwed it in. I then located the height at which I wanted to place my TV, then I pre-drilled the holes into the wall. I took the wood piece that was to be attached the wall and screwed it to the the pre-drilled holes.

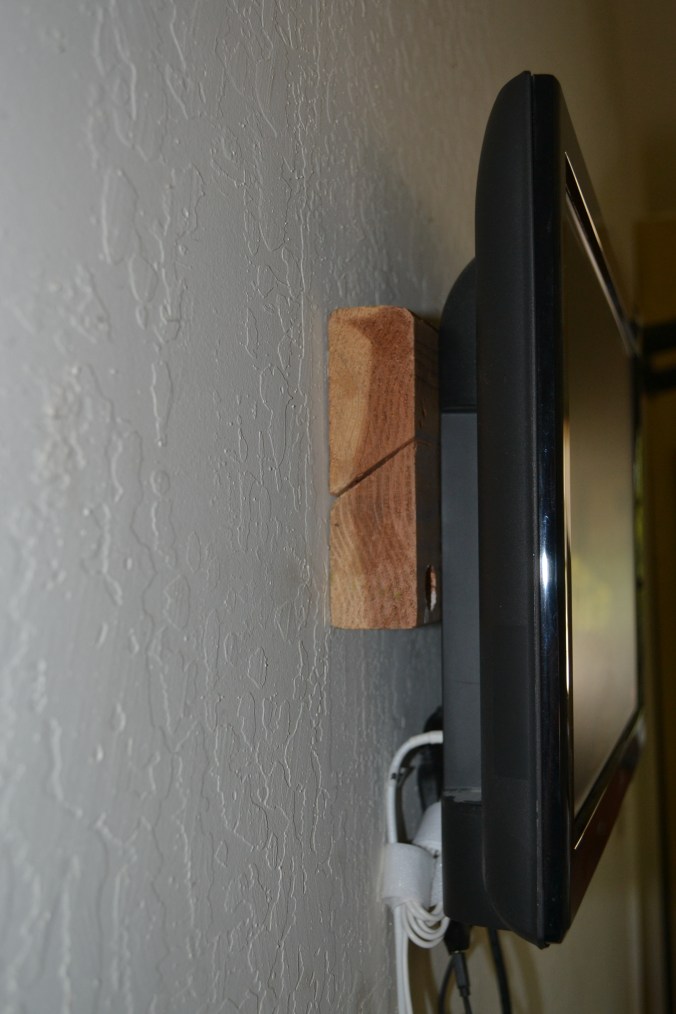

I attached all of the television cords while my TV was still faced down on the towel, and then hung it up on the new French Cleat Hook. This is a really quick way to hang almost anything. This method is cheaper than buying a mount and with leftover materials, you can create this too. I really liked this design hacks due to the fact that it’s such a strong hook and it was so cheap to make.

Maybe this might help you find solutions to hanging furniture issues.

DSC_6114

DSC_6115
